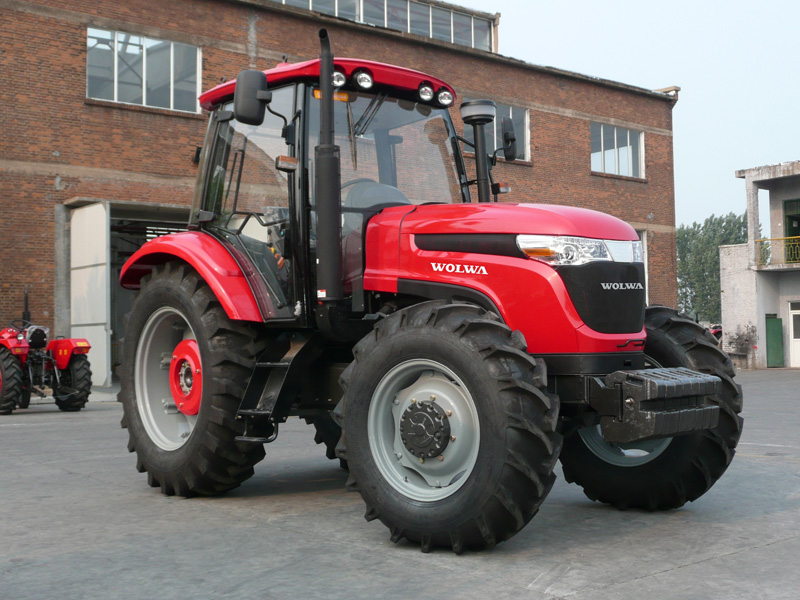

GN1204 tractor

Please call:
+86-537-6588123

Specifications

1204 tractor
1.120HP farm tractor,
2.high quality and competitive price.
3.Perfect service
4.Soonest delivery

Main Technical Data

Tractor Model

GN1204

General Specifications

Type

4 ×4

Overall Dimensions

L×W×H (mm)

4833 × 2080 ×2960 (with suspension)

Constructional weight (Kg)

4400

Traction force(KN)

42.00

Wheel base(mm)

2659

Front Wheel tread

1630-1960 for 4WD Adjustable

Rear Wheel tread

1504-2074 Adjustable

Land clearance (mm)

512

Engine

Type

LRC6105T51

Rated power (KW)

88.20

Fuel consumption (g/Kw.h)

240

Transmission

Clutch

LUK clutch (ingle disc, dry-type, dual stage, butterfly's shape spring is compressed tightly, independent operation)

Steering gear

The all hydraulic power steering

Working device

Max lifts capacity

25

PTO Shaft type

Independent and Synchronous P.T.O

 (R/min)

PTO Shaft Rated Speed

540/1000 (can choose720/1000)




GN1204 tractor
