GN101-2 walking type tractor

Please call:
+86-537-6588123

walking type tractor specification



Item

unit

value

whole machine

brand

/

wolwa

type

/

GN101-2

model

/

drive and pull

dimension

mm

2180×910×1060

wheelbase

mm

680-740

min ground clearance

mm

210

min use weight

kg

360

bob-weight

kg

/

gear number

/

6/2

theoretical velocity each gear

km/h

Ⅰ 2.2 Ⅱ 3.42 Ⅲ 5.53  Ⅳ 8.92 Ⅴ 13.87 Ⅵ 22.43  back upⅠ 1.69  back up Ⅱ 6.86

Engine and clutch coupling mode

/

triangle belt connect

start way

/

manual

engine★

brand

/

wolwa

model

/

single cylinder ,horizontal type,water cooling ,four travel, votex shedding

type

/

192

company name

/

wolwa

cylinder number

/

1

cylinder diameter×travel

mm

92×90

discharge capacity

L

0.598

compression ratio

/

21:1

calibration power

kW

7.35

calibration rotate speed

r/min

2300

fuel injection pump model ,type

/

single plunger pumpBF1A75Z01

fuel spray nozzle model type

/

Single shaft pin type PB40S

air filter type model

/

two section oil bath type

cooling system model

/

evaporation water cooling

Hand starting anti-reverse device model type



handle start equipment    185-S0000

headlight

type

/

C201-006

fuel tank

type

/

185-11100

work pressure

kPa

100-120

volume

L

9.1

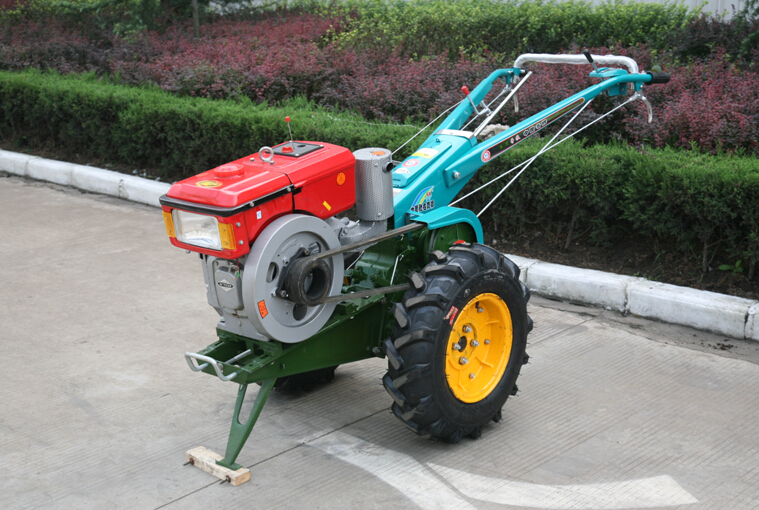

walking type tractor picture





GN101-2 walking type tractor
