GN151-2 walking type tractor

Please call:
+86-537-6588123

walking type tractor specification

Item

unit

value

whole machine



/



type

/

GN151-2

model

/

drive and pull

dimension

mm

2300×1090×1105

wheelbase

mm

680-850

min ground clearance

mm

230

min use weight

kg

530

bob-weight

kg

/

gear number

/

6/2

theoretical velocity each gear

km/h

Ⅰ 2.38 Ⅱ 4.61 Ⅲ 7.16? Ⅳ 8.86 Ⅴ 15.77
Ⅵ 26.4?? back upⅠ 1.89? back up Ⅱ 7.0

Engine and clutch coupling mode

/

triangle belt connect

start way

/

manual

engine★

brand

/

wolwa

model

/

single cylinder ,horizontal type,water cooling four travel ,direct injection type

type

/

GN1100

company name

/

wolwa

cylinder number

/

1

cylinder diameter×travel

mm

100×115

discharge capacity

L

0.903

compression ratio

/

17:1

calibration power

kW

11.03

calibration rotate speed

r/min

2200

fuel injection pump model ,type

/

monomer rack pump BF1A85Z01

fuel spray nozzle model type

/

long porous type PF68S07

air filter type model

/

steel wire two section oil bath type

cooling system model

/

evaporation

Hand starting anti-reverse device model type



handle start equipment ? ZH195-S0000

headlight

type

/

C201-006

fuel tank

type

/

ZH1100-07500

work pressure

kPa

100-120

volume

L

12

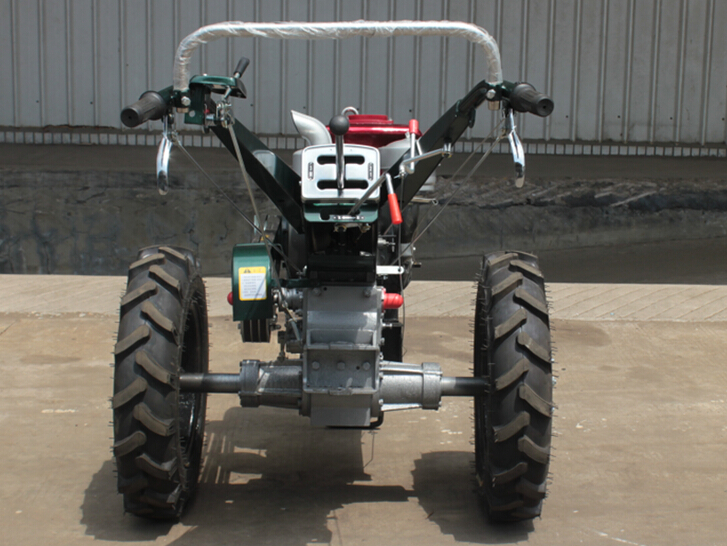

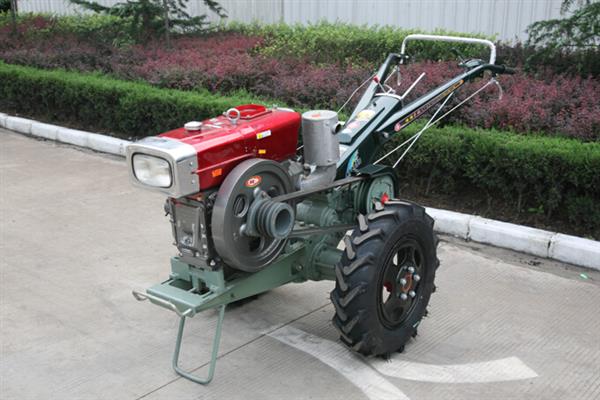

 walking type tractor picture
