GN121H walking type tractor

Please call:
+86-537-6588123

walking type tractor specification

Item

unit

value

whole machine



/



type

/

GN121H

model

/

drive and pull

dimension

mm

2520×980×1250

wheelbase

mm

680-785

min ground clearance

mm

210

min use weight

kg

336

bob-weight

kg

/

gear number

/

6/2

theoretical velocity each gear

km/h

Ⅰ1.99Ⅱ2.82 Ⅲ 3.66? Ⅳ 5.33 Ⅴ 12.23
Ⅵ 17.67?? ?back upⅠ 1.99 back upⅡ 2.93

Engine and clutch coupling mode

/

triangle type

start way

/

manual

engine★

brand

/

wolwa

model

/

single cylinder,horizontal type,water cooling,four travel,votex shedding

type

/

GN196

company name

/

wolwa

cylinder number

/

1

cylinder diameter×travel

mm

96×100

discharge capacity

L

0.723

compression ratio

/

17:1

calibration power

kW

9.00

calibration rotate speed

r/min

2200

fuel injection pump model ,type

/

monomer rack pump /BF1AK

fuel spray nozzle model type

/

long porous type /PF68S

air filter type model

/

two section oil bath type

cooling system model

/

evaporation water cooling

Hand starting anti-reverse device model type



handle start equipment 185-S0000

headlight

type

/

SJ18418

fuel tank

type

/

195A-11100

work pressure

kPa

100-120

volume

L

11

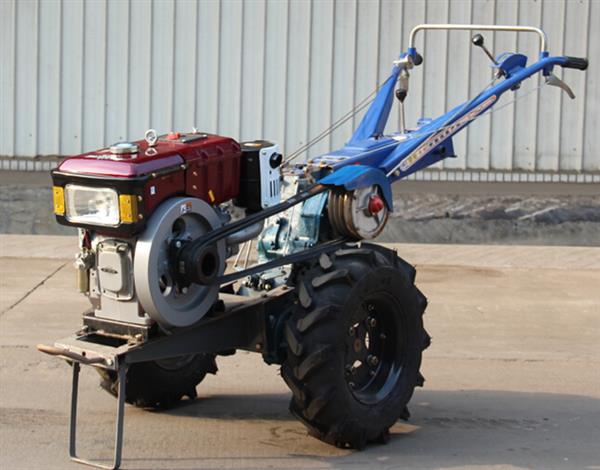

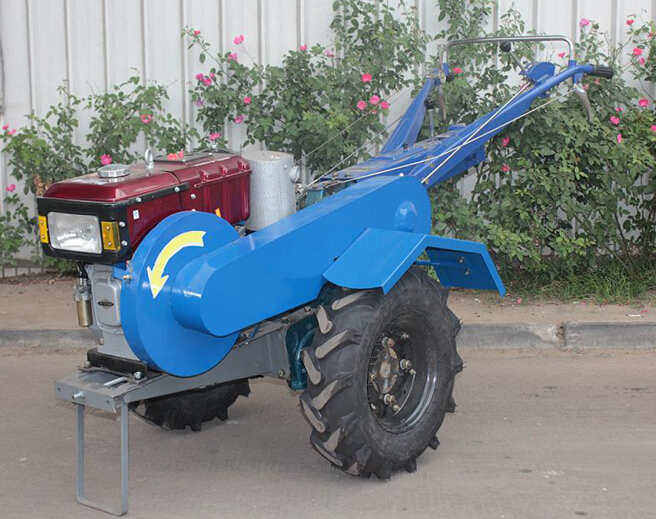

 walking type tractor picture



GN121H walking type tractor
