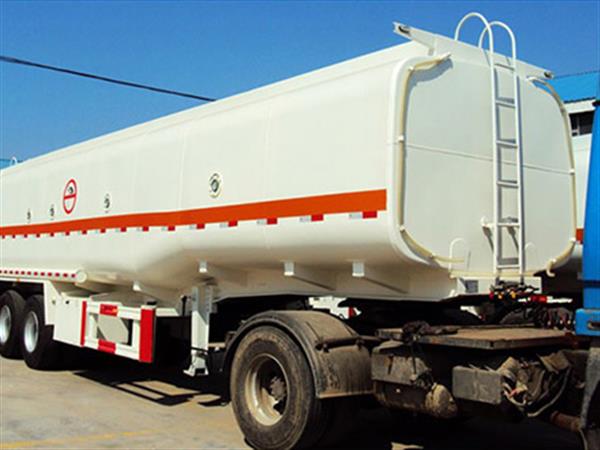

The fuel tank semi trailer is commonly used to transfer diesel fuel, petrol, crude oil, edible oil, palm oil, and liquid asphalt.
Tank Body |
|
Shape |
Round or Square |
Dimension |
12000mm×2490mm×3990mm ( The exact size depends on the final design.) |
Tare weight |
About 8000kg-12800kg |
Total Volume ( m3 ) |
25m³ -60 m³ |
Tanker Body Material |
5mm or 6mm/ Q235 carbon steel |
End Plate |
5mm or 6mm /Q235 carbon steel |
Manhole Cover |
Carbon steel or aluminum alloy API manhole cover, 500mm(diameter) |
Bottom Valve |
Aluminum API Pneumatic Bottom Valve |
Discharging Valve |
Diameter is 3 or 4 inch |
Compartments |
Optional |
Discharging Pipe |
4" rubber hose, 2 pcs , 6m/each |
Cat Walk |
With (Common model or special design) |
Chassis |
|
Main Beams |
Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material |
Axle |
2 or 3 axles, BPW/FUWA/HUAJING brand |
Landing Gear |
JOST (D200T ) or CHINA BRAND 28T |
King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension |
Mechanical suspension/Germany or America type /air suspension |
Leaf Spring |
90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without |
Pneumatic Braking System |
WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank |
Rim |
9.00-22.5/8.00-20/8.5-20 China Brand |
Tire |
/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS |
Optional |
Painting |
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
Accessories |
One standard tool box |
Shipping Terms |
By bulk cargo ,RORO or 40HQ Containers |
Introduction
The fuel tank semi trailer is commonly used to transfer diesel fuel, petrol, crude oil, edible oil, palm oil, and liquid asphalt.
As a specialist in the manufacture of fuel tank semi trailer, we have pioneered the application of plate bender and welder in the manufacture of fuel tanks. Our industry leading design capability allows us to supply your desired tank trailers in the shortest possible time. We are an ISO9001 certified company. Our specially constructed tank transporters have taken up great market share of the African and Russian markets. We can sell Complete Knock-Down kits or Semi Knock-Down kits to our valued oversea clients. Contact us now for more information.

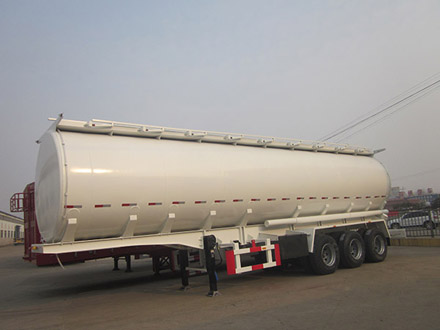

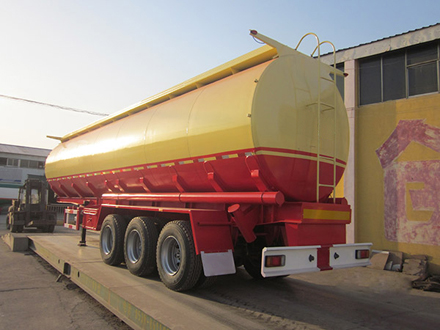

With a loading capacity in the range between 40 and 60m³, our fuel tank semi trailer often comes in various types, the most common being the 2-axle and 3-axle configurations.

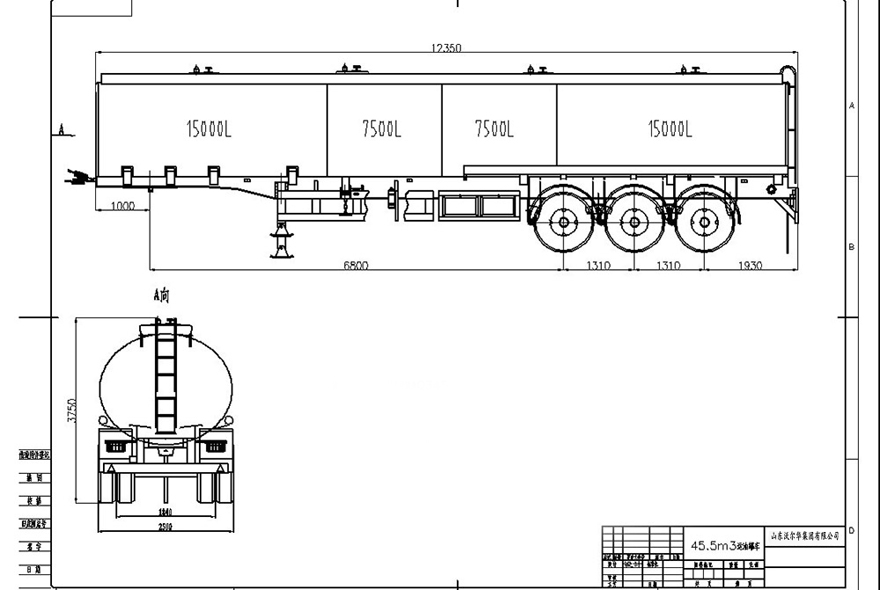

Q235 carbon steel, stainless steel, or aluminum is often used to construct the tank. The tank chamber is separated into several sections by upright walls, or partition walls. These walls prevent the formation of petrol wave when the tank trailer is driving on a bumpy road. At the lower end of the wall, through holes are drilled to reduce the impact and enhance the tank strength.
Combination lids are set on the top of the tank. They comprise of two lids, with the self-locking smaller one sits on the larger one. A breather valve is installed on the larger lid to prevent pressure or vacuum buildup.
The tank is grounded to discharge static electricity produced by the rubber tire, which might cause fire during fuel transfer operation. Upon your request, we can add a power take-off system to the tank that is powered by gearbox, which controls the tank to either sucks in or discharge fuel. The tank of our semi trailer also comes with two hoses and quick couplers. Its suction head is 6 meters. Two fire extinguishers and other specialized tools are also sure to come in handy during emergency. The whole tank semi trailer is comprised of two parts, the tank assembly and tank support.
In addition, the tank semi trailer can be equipped with various kinds of valves, discharge ports, and tank lids, such as in square or round shapes. Choices of these parts can be made all according to your likings.
Simply tell us the variety of materials to be transported, particle size, density, and desired tank capacity and weight, and we will design accordingly a suitable semi trailer model available with various chassis, tanks, and fuel feeders.
