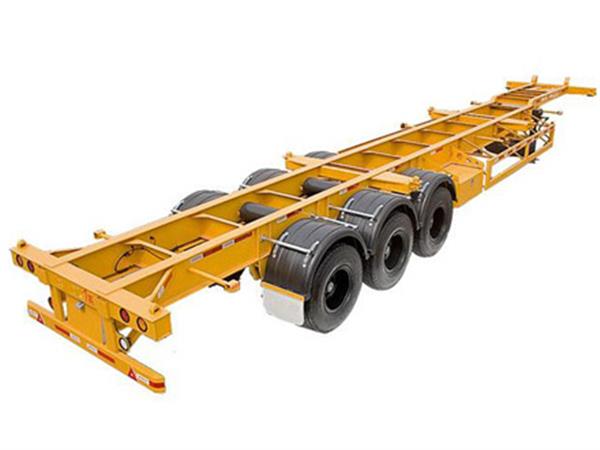

Skeleton semi trailer

The skeleton trailer is specially designed to carry various cargo containers. You can choose to use your road trailer to transport one 20inch, 40inch or 45inch container, or two 20inch containers at one time. The only difference that your choice makes is the number of locks required for specific transportation applications.

Please call:
+86-537-6588123
Specifications


Gross Weight

Approx. 5.5 tons or 3.2 tons

Dimension(mm)

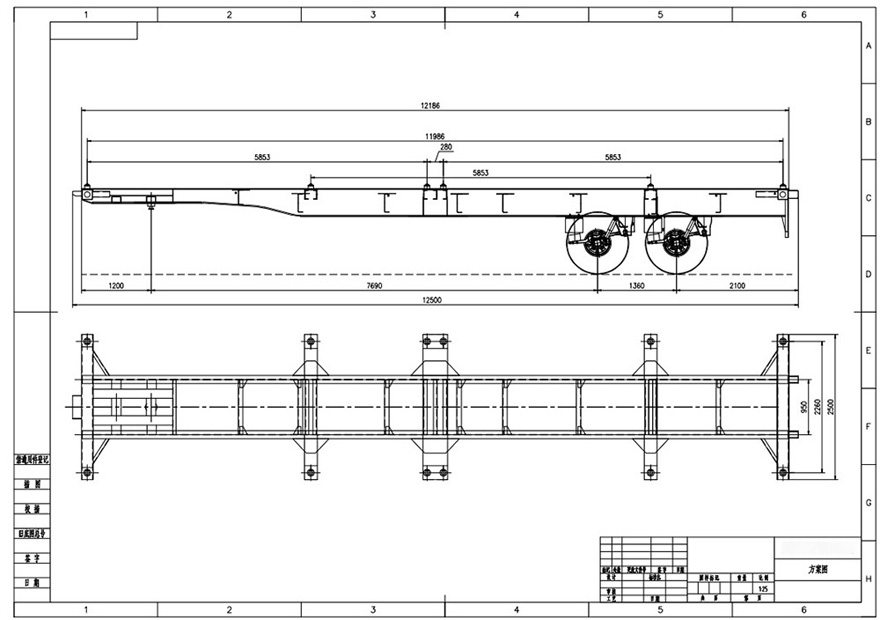

12450 × 2490 × 1557 (3 or 2 axles) 40FT7160 × 2490 × 1557 (2 axles) 20FT

Loading Capacity (Ton)

≤ 45 T (40FT) ≤ 30T (20FT)

AXLES

13 T /PER , FUWA Brand, BPW Brand, or Huajing Brand

Tire

12.00R22.5 or 315/80R22.5Chinese Brand or according to customer requirements

Rim

9.00-22.5 Chinese Brand

Suspension

Mechanical suspension (German or American type)Or Air suspension (Chinese brand or BPW brand )

Spring Leaf

90(W)mm×13(Thickness)mm×10 Layers or 100mm×12mm×12 layers

King Pin

JOST Brand 2.0 or 3.5inch (bolted or welded)

Landing Gear

JOST Brand D200T or Chinese Brand 28Tons (Double-speed)

Main Beam

Height: 500mm Upper plate: 14mm Middle Plate: 8mmBottom Plate is 16mm; Material: Q345B Steel

Side Beam

16mm or 18mm steel channel (Material: Q235steel ).

Brake Chamber

WABCO RE 6 relay valve; T30/30+T30 spring brake chamber (TKL brand), 45L air tank

Twistlocks

4, 8, or 12 sets (lifting or screw Type)

Valve

WABCO valve

ABS

Optional

Light

LED light

Voltage

24V

Socket(Receptacle)

7-pin Socket (for 7 wire harness)

Tool Box

1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.)

Painting

Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Shipping Terms

Transported by the bulk carrier in an RORO or 40HQ container.



 Introduction

The skeleton trailer is specially designed to carry various cargo containers. You can choose to use your road trailer to transport one 20inch, 40inch or 45inch container, or two 20inch containers at one time. The only difference that your choice makes is the number of locks required for specific transportation applications.

The main beam is a welded structure that has been sent through submerged arc welding process. The whole bodywork is shot-peened to receive an anti-corrosive coat. All the trailer parts are selected from qualified suppliers, able to withstand long time of uses.

Skeletal container trailers have a key role to play in the multimodal transport system. Various shipment options, including sea, air, road, and rail transportations, require the use of a skeletal trailer. The vehicle is also commonly seen in the ports and tunnels, on the bridges, and at the interchange stations.

Goods are loaded into a container and leave the warehouse by way of a trailer truck. When arriving at the interchange station, you can unload the whole container without the need to take out the goods from container. Also, you can transfer the cargo directly from the truck to another means of transportation. Rapid load and unload allow drivers to deliver the goods to customers in a fast manner.

We are a specialist in the design and production of container semi-trailers. With experience gained over 25 years, we have successfully passed the CCC and ISO9001:2008 certifications.

Each trailer can be custom designed to fit your individual needs. Different trailer models and configurations will be recommended according to the market demand. Please refer to the following table for specifications. If you want to know more about the trailer, please contact u s now.

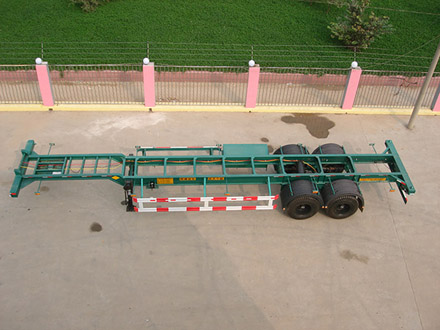

Skeleton semi trailerSkeleton semi trailerSkeleton semi trailer
