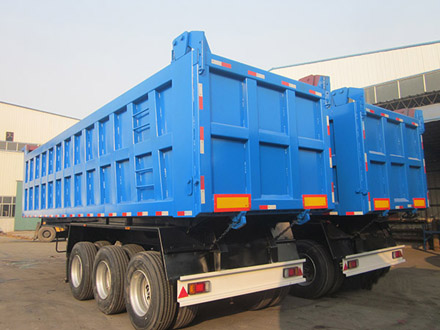

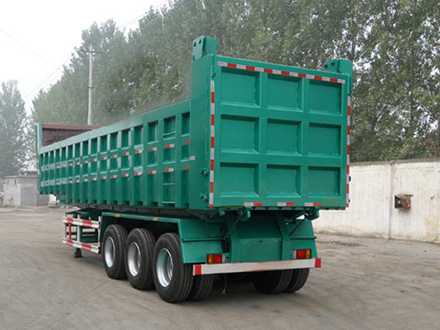

The rear dumping semi trailer is very efficient at transporting and unloading coals, limestone, sands, and other loose materials in bulk. CAD software is used to optimize the structure of the whole trailer. FEA method is adopted in design and development of the trailer chassis.
Semi Trailer Dimension |
11280×2495×3970mm (Outside Dimension)10500×2300×1700mm (Inside Dimension) |
Tare Weight |
About 15600kg |
Total Volume (m3) |
37 m³ or less than 80tons |
Side wall thickness (mm ) |
6mm Q235 steel |
Bottom plate thickness(mm) |
8mm /Q235 steel |
Lifting system |
Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder |
Chassis |
|
Main Beams |
Height:500mm Upper plate: 16mm Middle plate: 8mm (2-in-1 or 3-in-1 plate) Lower plate: 18mm Material :Q345B steel |
Axle |
3 axles, FUWA/HUAJING brand 16tons per axle |
Landing Gear |
JOST (D200T) or Chinese brand 28T |
King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension |
Mechanical suspension/ America type / |
Leaf Spring |
90(W)mm×13(Thickness)mm×10 layers |
Pneumatic Braking System |
WABCO RE 6 relay valve; Spring brake chamber; 45L air tank |
Rim |
9.00-22.5/8.00-20/8.5-20 China Brand |
Tire |
/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Various tire brands are available. |
ABS |
Optional |
Painting |
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
Accessories |
One standard tool box |
Shipping Terms |
By Bulk Cargo or RORO The trailer size can be designed according to your special requirements. You can choose a 6×4 model truck for use with your rear dump semi |
The rear dumping semi trailer is very efficient at transporting and unloading coals, limestone, sands, and other loose materials in bulk. CAD software is used to optimize the structure of the whole trailer. FEA method is adopted in design and development of the trailer chassis.

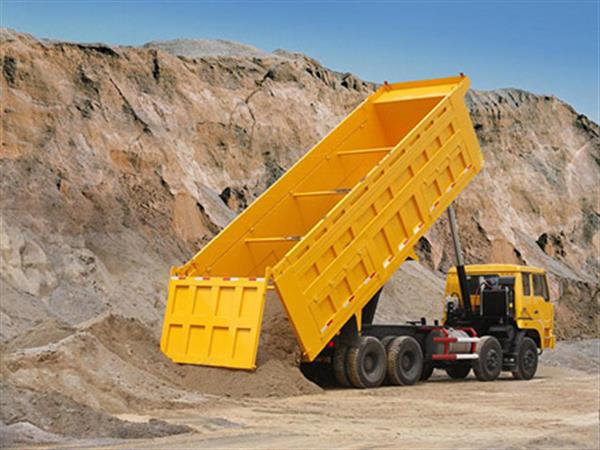

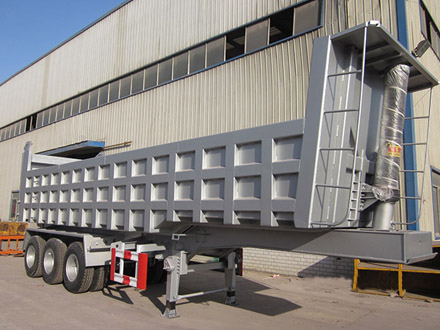

This scientific semi trailer design allows the trailer to have reduced weight while carrying the same load as an ordinary rear dumping unit. The dumping box is made of high-strength, cold rolled corrugated plates. It features a frameless construction, and offers choices of heights and loading space size. Multiple hydraulic cylinders are used to jack up the box so that it would tilt backwards to dump the materials being carried.
Additionally, side dump cylinders are available to allow the trailer to carry more loads. Customers also can choose either left- or right-side dumping configuration.
Our rear dumper trailer can be custom designed according to customer specific requirements. Please tell us the kind of materials to be transported and we can then design a suitable model to meet your need.
