Timber transport semi trailer

The timber transport semi trailer is specially designed for long-distance transportation of timber to and from mountain areas or forests. This timber transportation vehicle is commonly seen in Russia and Southeast Asia. 12×12 or 14×14 steel channel are used as posts that are placed on both sides of the trailer. Upon your request, we can extend the posts to deliver greater safety.

Please call:
+86-537-6588123

Tare Weight

About 6.8-8.6T

Dimension

13000mm*2490mm*2860mm(Outerside)

12800*2300*1800mm

Loading Capacity (T)

≤ 60 T

Axle

13 T/16T, FUWA /BPW /Huajing Brand

Rim

9.00-22.5

Tire

12.00R22.5/ 315 80R22.5

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (Chinabrand or BPW brand )

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer or100mm*12mm*12

King pin

JOST brand 2.0 or 3.5inch bolts type or Welding type

Support leg

JOST brand D200T orChinabrand 28Tons (Double speed)

Main beam

Height:500mm, upper plate is14mm, middle plate is8mm,

down plate is16mm; Material is Q345B Steel .

Side beam

16mm or18mmchannel steel (Material is Q235steel).

Side Wall

600mm-1800mm the open door can be choose freely.

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamberTKL brand; Two pieces of 45L air tanks

ABS

Optional

Twist Locks

Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)  ,optional

Valve

WABCO valve

Light

LED light

Voltage

24V

Receptacle

7 pin socket( for 7 wire harness)

Tool box

1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.)

Painting

sandblasted, anti-rust chassis surface is available with 1 coat of anticorrosive prime, 2 coats of final paint

Shipping terms

By Bulk cargo carrier,RORO or 40’HQ container


The timber transport semi trailer is specially designed for long-distance transportation of timber to and from mountain areas or forests. This timber transportation vehicle is commonly seen in Russia and Southeast Asia. 12×12 or 14×14 steel channel are used as posts that are placed on both sides of the trailer. Upon your request, we can extend the posts to deliver greater safety.

Features

Main parts of our timber transport trailer are machined by advanced equipment. The vertical beam is a welded structure produced by using a US automatic- tracking welder through submerged arc welding process. Axles are installed to the semi trailer accurately with a loader. Precise axle track can be achieved thanks to the distance measuring tool.
This series of semi trailer uses single-point mechanical suspension system. When use in combination with drop-side trailer or flatbed trailer, it also can adopts American or German type 3-axle mechanical suspension system. Its load capacity is somewhere between 30t and 50t.

Introduction:

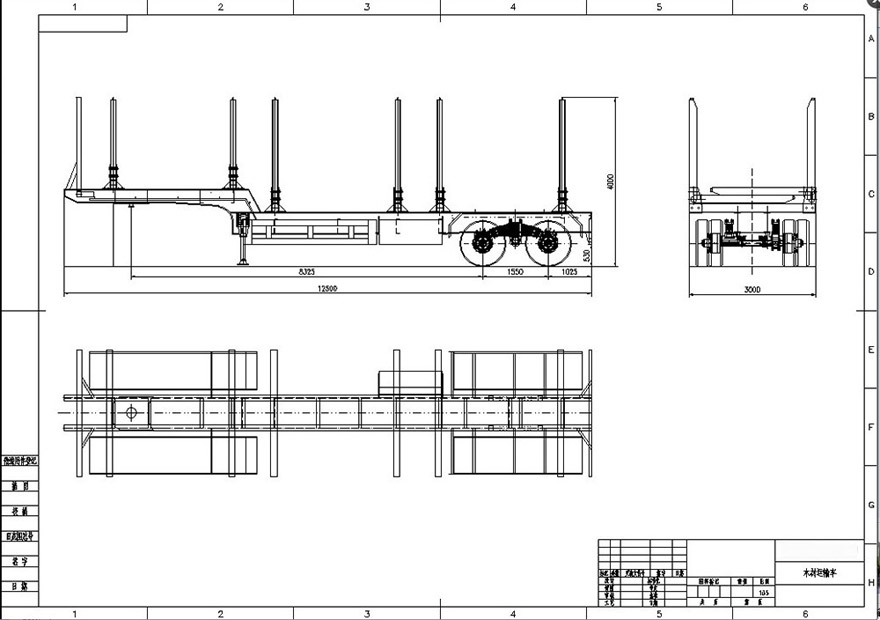

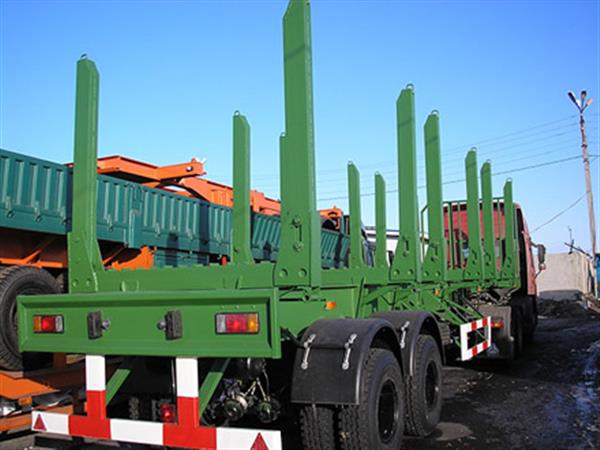

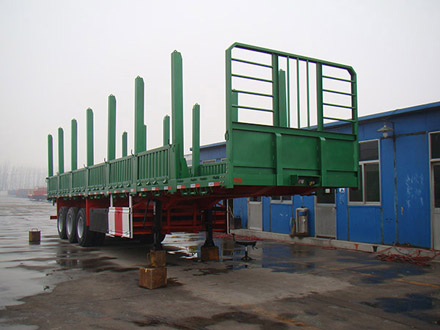

Timber transport semi trailerTimber transport semi trailerTimber transport semi trailer
