Stake semi trailer

The stake bed semi trailer generally has a flat bled enclosed by fence-like exterior. It is widely used to transport animals, steel coils, coals, and other light puffy cargoes.

Please call:
+86-537-6588123

Tare Weight

About 8.3T

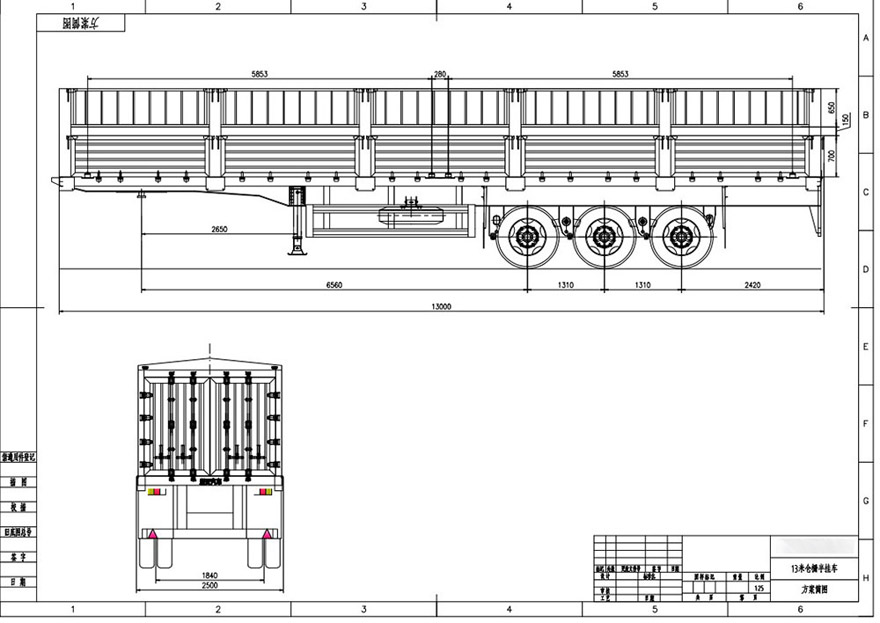

Dimension

13000mm*2490mm*2860mm(Outerside)

12800*2300*1800mm

Loading Capacity (T)

≤ 60 T

Axle

13 T/16T, FUWA /BPW /Huajing Brand

Rim

9.00-22.5

Tire

12.00R22.5/ 315 80R22.5

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (Chinabrand or BPW brand )

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer or100mm*12mm*12

King pin

JOST brand 2.0 or 3.5inch bolts type or Welding type

Support leg

JOST brand D200T orChinabrand 28Tons (Double speed)

Main beam

Height:500mm, upper plate is14mm, middle plate is8mm,

down plate is16mm; Material is Q345B Steel .

Side beam

16mm or18mmchannel steel (Material is Q235steel).

Side Wall

600mm-1800mm the open door can be choose freely.

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamberTKL brand; Two pieces of 45L air tanks

ABS

Optional

Twist Locks

Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)  ,optional

Valve

WABCO valve

Light

LED light

Voltage

24V

Receptacle

7 pin socket( for 7 wire harness)

Tool box

1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.)

Painting

sandblasted, anti-rust chassis surface is available with 1 coat of anticorrosive prime, 2 coats of final paint

Shipping terms

By Bulk cargo carrier,RORO or 40’HQ container





Introduction:

The stake bed semi trailer generally has a flat bled enclosed by fence-like exterior. It is widely used to transport animals, steel coils, coals, and other light puffy cargoes.

Features:

1. The fence-like structure and bodywork of our semi trailer are properly designed to suit the kind of goods to be transported. In design of this stake bed trailer, we take special care to reduce its weight while ensuring the load capacity is up to the standard. The simplified design allows easy disassembly. It also reduces production costs, thus passing on more savings to customers.
2. Axles of the stake sides trailer are connected together by a horizontal beam, which also passes through the vertical beam and is welded into one piece with it to form a spatial structure. The semi trailer bodywork is designed to share load evenly across all parts. It is able to withstand high load without deformation.
3. Vertical beam is either straight, or arch-shaped that looks like a gooseneck. The I-beam has a web that measures 450mm to 500mm in height. Submerged arc welding method is used to connect the vertical beam to the base structure. The chassis is sandblasted to receive a smooth finish.

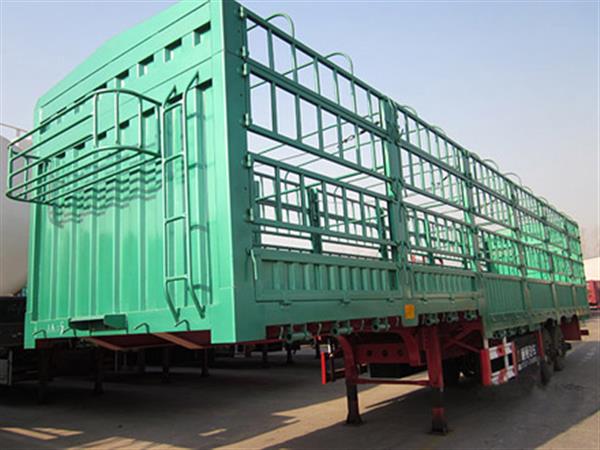

Stake semi trailer

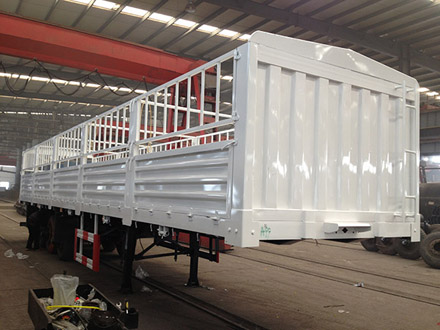

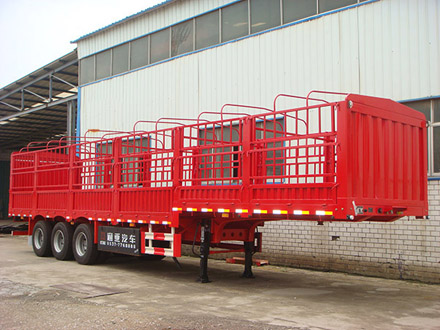

Stake semi trailerStake semi trailerStake semi trailer
