P-15B scraper loader introduction

P - 15 b type scraper rock loader for small coal mines and large ore mining roadway drivage with MGC1.1 fixed box car harvesters or skip loading rock, use of half coal rock, applicable to the clear height more than 1.9 meters, more than 4.5 meters net section of the roadway. Can be used in the half coal rock or rock, both can be used for entry to climb the mountain can also be used for rock tunneling faces and so on, such as adding two tail wheel, can in turn roadway drivage parallel operation between rock loading process. It not only can be used in the entry, but also in the Angle is less than 30 degrees of inclined lane or bend and bend Angle of 90 degrees of roadway in use, and also can carry on the excavation process of parallel operation at the same time, improve the driving speed.

P-15B scraper loader model definition

model：P-15B scraper loader；
P——scraper loader；
15——scraper volume 0.15m3；
B——anti-broken

P-15B scraper loader structure and feature

P-15B Scraper rock loading machine has high efficiency, simple structure, convenient operation, etc. P - 15 b type scraper mucker electrical equipment (including motor), button switch, magnetic starter, lamp, etc all can choose flame-proof type, there is a risk of gas and dust can be used in the mine.
P - 15 b scraper mucker is mainly composed of fixed wedge, tail wheel, scraper, transmission part (including the operating mechanism, trolley, winch, guide wheel, a trough (feed trough, middle, handling material) and the main components of electrical parts.

P-15B scraper loader parameter

productivity	m3/h	15
scraper volume	m3	0.15
Winch type		planetary gear double-drum hoist
work roller traction	kN	12.3
idle roller traction	kN	8.8
main rope traction speed	m/s	1.1
tail rope traction	m/s	1.7
wire rope dia.	m/s	12.5
dimention	mm	4700×1170×1750

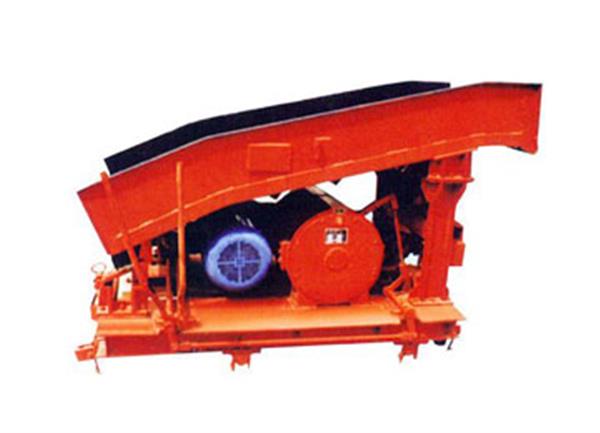

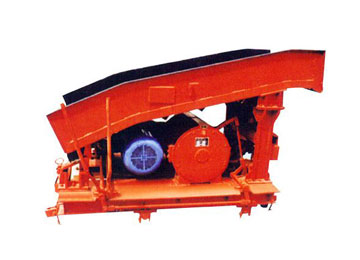

P-15B scraper loader picture
