P-90B Scraper mucker product introduction

P - 90 - b type scraper mucker is widely used in the roadway drivage with harvesters or basket for loading operation. Simple structure, and high efficiency, good reliability and wide application. Not only can be used for entry, and P - 90 - b type scraper rock loader can be applied to clear height of 3 meters (net section 12 square meters) of roadway.

P-90B Scraper mucker structure

1、Wedge fixed: the fixed on the head to tail suspension wheel, by wedge, rope and set with taper sleeve, ring, etc.　

2、Tail wheel: is hanging on a fixed set of wedge ring, to guide the scraper return head-on, mainly by the side panel, wear-resisting, hook, rope wheel core shaft and bearing. Scraper is in the main line, tail rope traction operating reciprocating motion, pick rocks, rake Angle of 60 °, flat inclined roadway and general, is the main tool rake machine pick rock, tine USES the abrasion resistance of high manganese steel material, after serious wear and tear of tine for replacement.

3、On the operating mechanism, winch, guide wheel and feed trough, trough, unload groove in the middle. Feed trough in the middle of the equipped with lifting device, rotating screw adjust the height of the dustpan mouth, in order to guide the scraper in and out and prevent waste rock sala, the splicing area around also has deflector; Before and after the middle groove bending parts, each equipped with loading and unloading of wear-resistant arc plate; Unload groove at the back of the spring to meet with cushion and brace.

P-90B scraper loader parameter

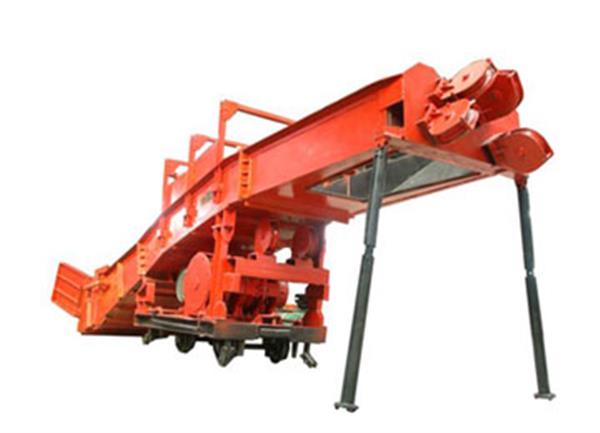

P-90B scraper loader picture
