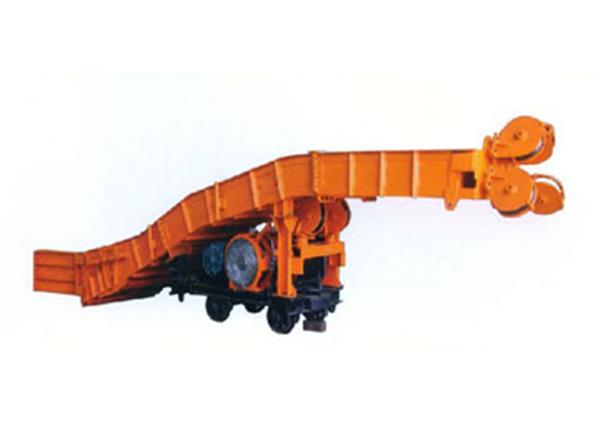

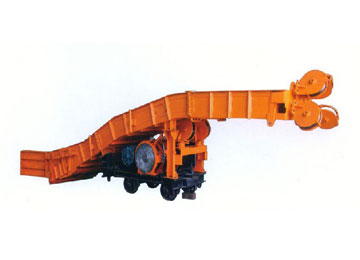

P-30B scraper loader

And high efficiency, simple structure, wide scope of application

Please call：
+86-537-6588123

FEATURE
PARAMETER SPARE
Leave a message

P-30B scraper loader introduction

P - 30 b scraper mining rock rock loader is used in the ground or in the roadway drivage, cooperate with the car or skip loading rock. P - 30 b scraper with rock machine has put high efficiency, simple structure, wide scope of application, etc. Can not only in the roadway, but also under 30 DHS downhill or uphill slope to the rock of roadway, in no more than 90 DHS corner of roadway can work well. Using this kind of loading machine, but also for excavating process, parallel operation between the drivage efficiency, is the main mechanical equipment to realize mechanized drivage.

P-30B scraper loader model definition

P——scraper loader；
30——scraper volume 0.30m3；
B——anti-broken

P-30B scraper loader structure and working principleIn

P - 30 b scraper mucker cart, equipped with two drum hoist, they are under the drive of motor, traction with the main line and the tail rope, respectively, through the main line and tail rope manipulated the scraper to make reciprocating movement, of dustpan mouth baffle the guidance, the rocks, stole into the feed trough, through intermediate slot, at discharge port at the end of the unloading groove unloaded into the harvesters, ore so repeatedly, to fill your car, so as to realize rock.

P-30Bscraper loader parameter

productivity（m3/h）	30-50
scraper volume（m3）	0.3
Winch type	planetary gear double-drum hoist
Work roller traction（kN）	13.23-19.11
Idle roller traction（kN）	9.48-13.64
main rope haulage speed（m/s）	0.85-1.22
Tail rope haulage speed（m/s）	1.18-1.7
wire rope dia.（m/s）	12
dimention（mm）	6600×1500×1950
