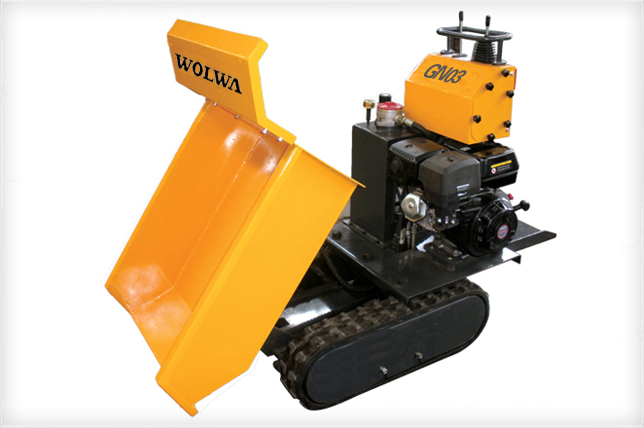

Mini dumper is mainly composed of hopper and walking chassis，Through material in gravity or hydraulic cylinder thrust tilting unloading。Discharge according to the different azimuth，Front to discharge，Rotary discharge，Rollover unloading，High fulcrum discharge，Lift tilting discharge and so on.
Mini dumper is mainly composed of hopper and walking chassis，Through material in gravity or hydraulic cylinder thrust tilting unloading。Discharge according to the different azimuth，Front to discharge，Rotary discharge，Rollover unloading，High fulcrum discharge，Lift tilting discharge and so on.
|

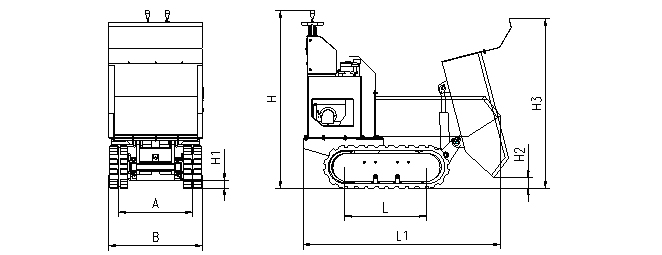

Max operating height(H) |
1300mm |
51.18 in |
|
Max lifting height(H3) |
1238mm |
48.74 in |
|
Skip Max Dumping height(H2) |
60mm |
2.36 in |
|
Skip Dumping Angle(α) |
80° |
|
|
Wheel base(L) |
620mm |
24.4 in |
|
Total length(L1) |
1498mm |
58.98 in |
|
Ground clearance(H1) |
55mm 2.2 in |
|
|
Tread width ,centerline to centerline(A) |
550mm |
21.65in |
|
Total width(B) |
764mm |
30.08 in |
|
Minimum turn radius R |
912mm |
35.9in |
|
Engine |
Single-cylinder, four-stroke ,air-cooled |
||
|
Rated power |
7KW(8HP) /3600rpm |
||
|
Maximum torque |
23.5N.m/2400 rpm |
||
|
Noise (Db) |
≤80 |
||
|
Hydraulic system |
Hydraulic pressure(Mpa) |
15 |
|
|
Cycle time(s) |
Dumping |
Retracting |
|
|
2.28 |
1.3 |
||
|
Technical Parameter |
Rated loading |
350Kg 771.6 Lb |
|
|
Skip capacity(level) |
0.13m3 4.6 ft3 |
||
|
Speed |
3.3Km/h 2.05mile/h |
||
|
Operating weight |
420Kg 925.9Lb |
||
