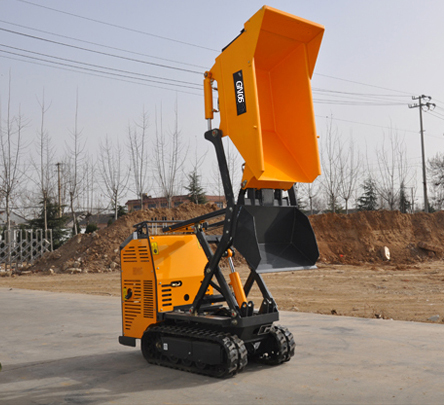

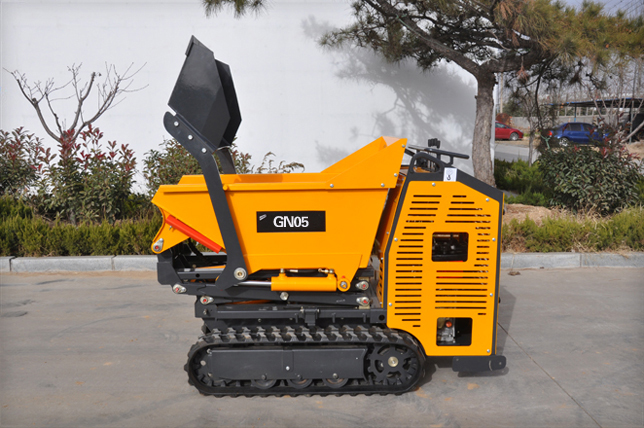

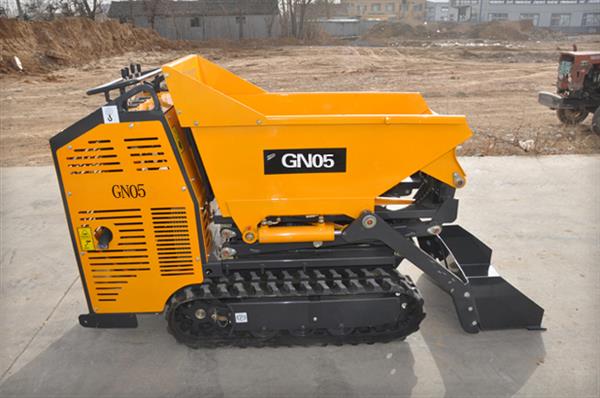

Mini dumper is mainly composed of hopper and walking chassis，Through material in gravity or hydraulic cylinder thrust tilting unloading。Discharge according to the different azimuth，Front to discharge，Rotary discharge，Rollover unloading，High fulcrum discharge，Lift tilting discharge and so on.
Mini dumper is mainly composed of hopper and walking chassis，Through material in gravity or hydraulic cylinder thrust tilting unloading。Discharge according to the different azimuth，Front to discharge，Rotary discharge，Rollover unloading，High fulcrum discharge，Lift tilting discharge and so on.
|
model |
GN05 |
|
||
|
|
|
|||
|
Length |
1150 |
|
||
|
Width |
648 |
|
||
|
Height |
515 |
|
||
|
capacity |
0.2 m3 |
|
||
|
Skid capactiy |
0.04 m3 |
|
||
|
Skip dumping angle |
57°/47° |
|
||
|
Angle from the ground |
10° |
|
||
|
Engine |
|
|||
|
Place of origin |
China |
|
||
|
Fuel |
Diesel |
|
||
|
Rated power |
6.8Kw |
|
||
|
Rated speed |
3000r/min |
|
||
|
Number of Cylinder |
1 |
|
||
|
Hydraulic system |
|
|||
|
Motor |
China |
|
||
|
duplex pump |
China |
|
||
|
System pressure |
16MPa |
|
||
|
Flow |
12ml/min |
|
||
|
capacity of hydraulic oil tank |
19.4L |
|
||
|
Body of machine |
|
|||
|
Operating weight |
600kg |
|
||
|
Load capacity |
500kg |
|
||
|
oil tank capacity |
5.5L |
|
||
|
Speed |
3.5km/h |
|
||
|
gradeability |
15% |
|||
