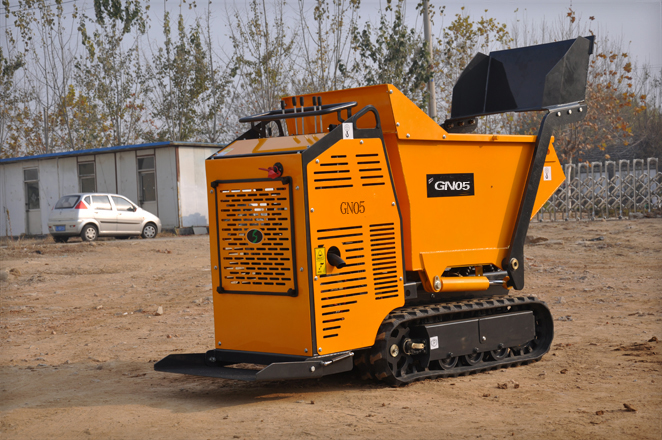

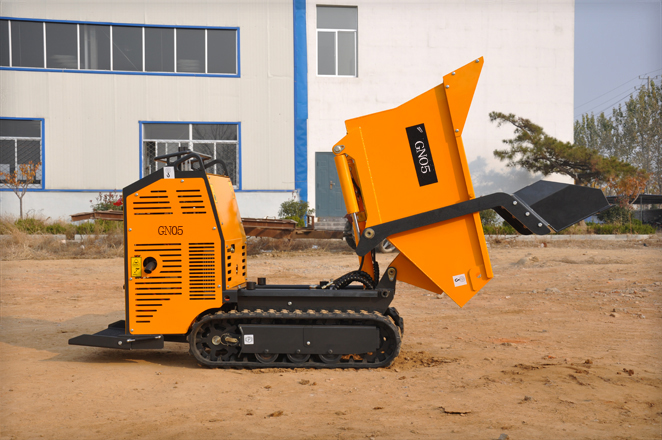

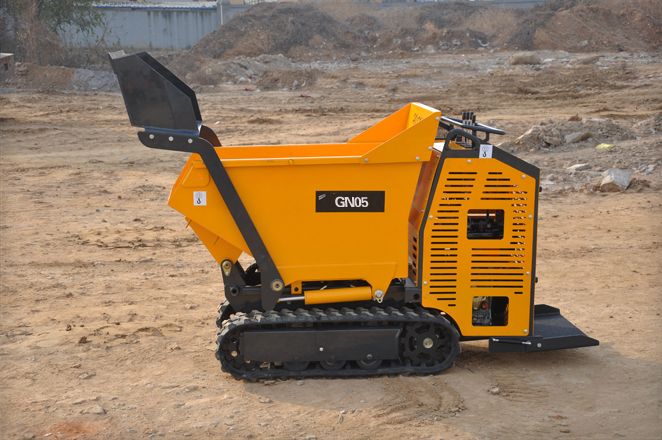

Mini dumper is mainly composed of hopper and walking chassis, with the help of the gravity of the bucket material or cylinder.
|
Model |
GN05A |
|
|

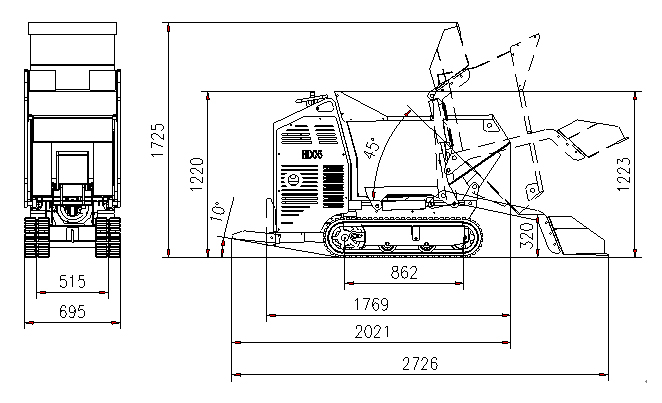

shape |
|
|
|
length |
1221 |
|
|
width |
690 |
|
|
height |
585 |
|
|
volume |
0.31 m3 |
|
|
Prevent slippery ability |
0.04 m3 |
|
|
pour angle |
45° |
|
|
angle from ground |
10° |
|
|
engine |
|
|
|
origin |
China |
|
|
fuel |
diesel |
|
|
rated power |
6.8Kw |
|
|
rated speed |
3000r/min |
|
|
Number of cylinders |
1 |
|
|
hydraulic system |
|
|
|
engine |
domestic |
|
|
Double pump |
domestic |
|
|
system pressure |
16MPa |
|
|
system flow speed |
12ml/min |
|
|
hydraulic oil tank VOL. |
19.4L |
|
|
Body of machine |
|
|
|
operating weight |
800kg |
|
|
capacity |
600kg |
|
|
fuel oil tank |
5.5L |
|
|
speed |
3.5km/h |
|
|
gradeability |
15% |
|
