Mini dumper GN10

mainly composed of hopper and walking chassis, with the help of the gravity of the bucket material or cylinder

Please call：
+86-537-6588123

FEATURE
PARAMETER SPARE
Leave a message

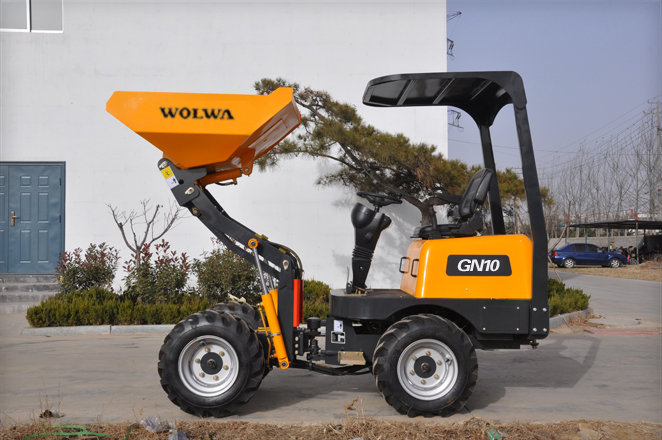

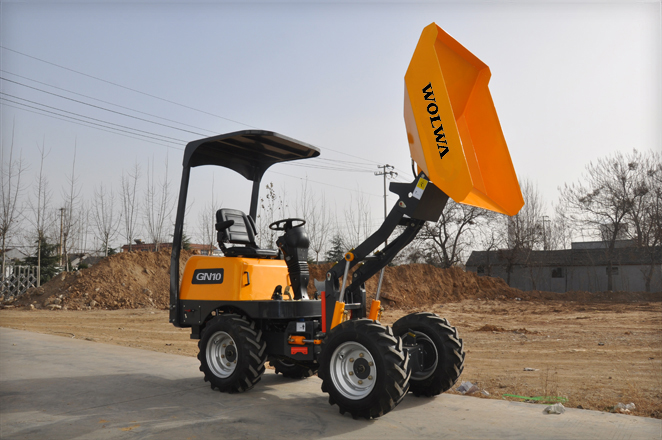

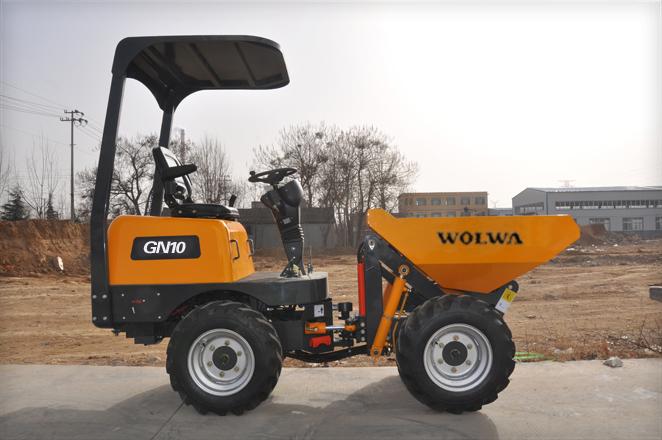

Mini dumper GN10 introduction：

Mini dumper is mainly composed of hopper and walking chassis, with the help of the gravity of the bucket material or hydraulic cylinder to tilting unloading material. It can be devided to front discharge, rotary discharge, side discharge, high fulcrum discharge (with limited height) and lift tilting discharge (discharge height can changable), etc.

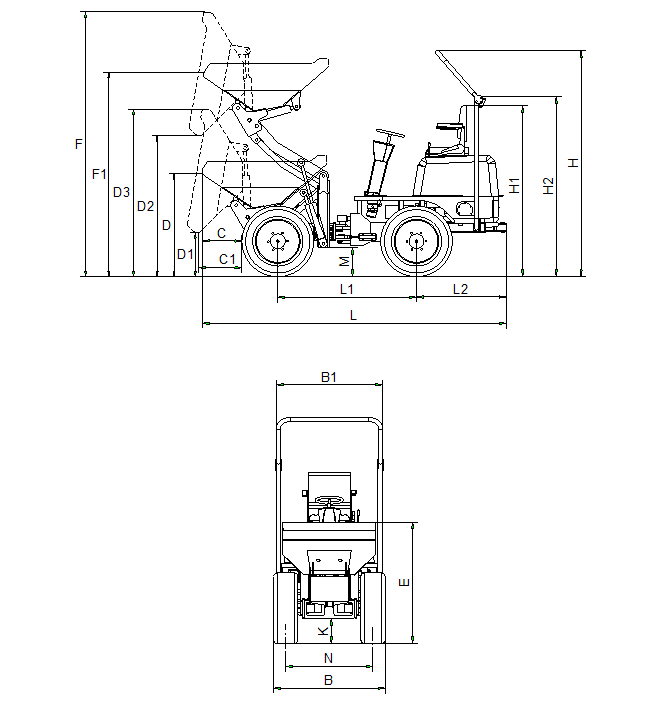

Mini dumper GN10 parameter：

Mini dumper GN10 parameter
No.	item	parameter
1	working weight	1000KG
2	total weight	1100KG
3	engine	3M78 China
4	turn speed	3000r/min
5	engine model	water cooled cylinder
6	power	16KW
7	speed	1-10 Km/h
8	self discharge angle	45°
9	turning angle	±30
10	gradabillity	45°
11	drive type	4WD
12	braking type	rear wheel braking
13	tire model	10.00/75-15.3
14	hydraulic pump flow	60L/min
15	pressure	16MP
16	oil tank Vol.	15.3L
17	hydraulic oil tank Vol	30L
18	battery	36AH
19	electric current	36A
20	voltage	12V
21	noise	≦107dB（A）
