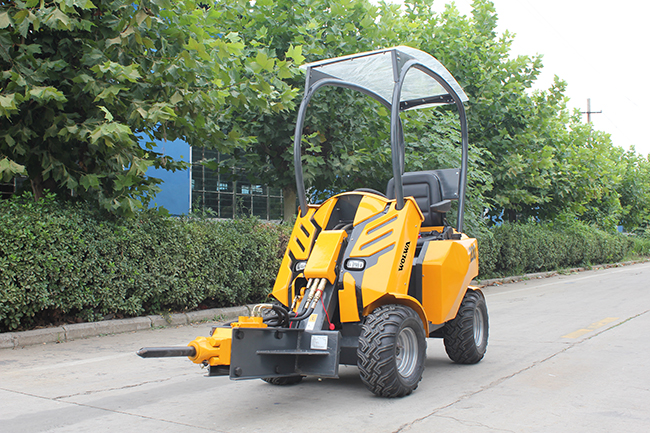

Small loader GN200 is a mechanical equipment with many uses,widely used in park, courtyard, lawn, garden,etc
Small loader GN200 is a mechanical equipment with many uses , powerful hydraulic auxiliary system can drive many supported tool,
widely used in park, courtyard, lawn, garden or any other place in the environment.
1, strong hydraulic auxiliary system can connect the multi-function of assistive devices. It is more comfortable to operate.
2, Articulated steering chassis, four-wheel drive.
3, Operation more easily.
4, Small loaders GN200 with two foot switch can control hydraulic transmission device smoothly and continously. One forward, the other backward to make small loader GN200 easier control and movement.
5, More secure, viewing Angle 360 °, automatical balance lifting device, reliable bridge bumper ensures the safety and comfort of the driver. When faced with special circumstances need to be more narrow space in the workshop, it can be removed.

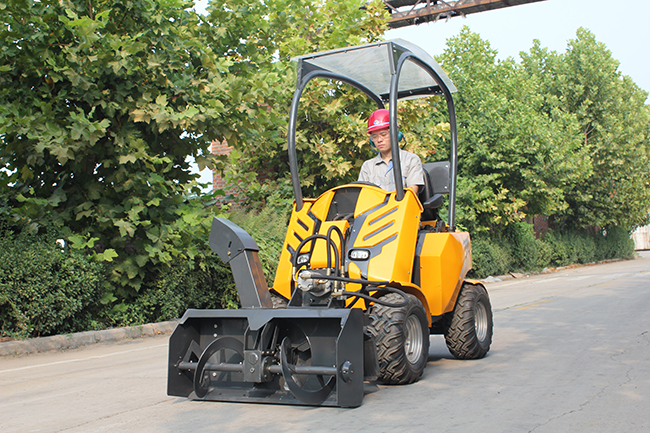

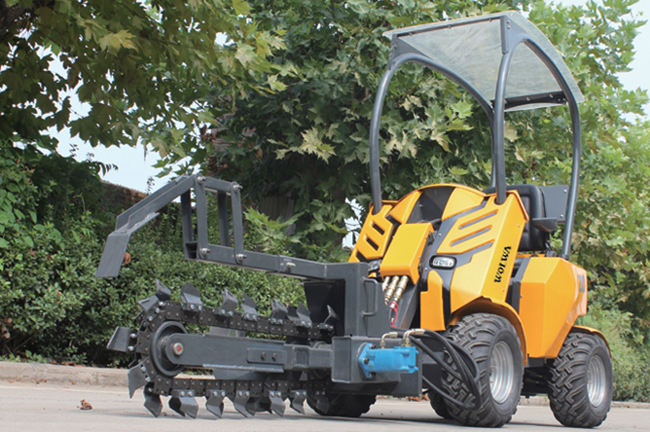

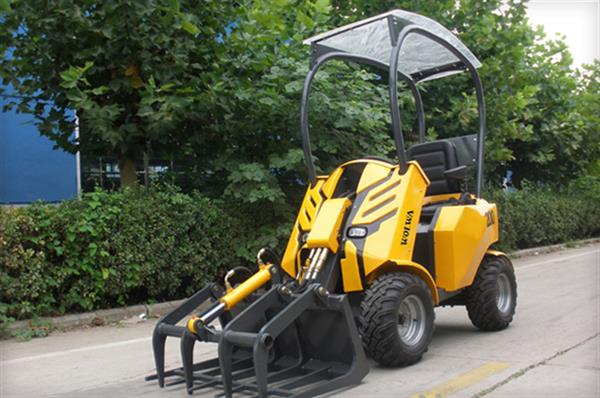

6, A variety of affix, more functional, more efficient.
7, Engine, hydraulic pump and multichannel valve is imported from the United States.
8, Hydraulic power turning
9, Widely used in gardens, manufacturing, construction, recycling, gardens, roads, buildings, farms, and other industrial fields.

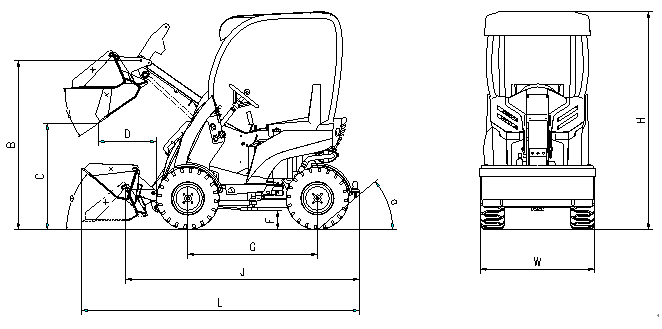

Small loader GN200 parameter:
item |
GN200 |
Max.pin angle(B) |
1412 mm |
Max.discharge height(C) |
900 mm |
Top discharge distance(D) |
558 mm |
total height(H) |
2020 mm |
ground clearance(F) |
160 mm |
axle base(G) |
1225 mm |
length without bucket(J) |
1950 mm |
total width(tyre outside)(W) |
970 mm |
bucket width(K) |
924mm |
total length(L)(with bucket) |
2365 mm |
departure angle(α) |
40° |
bucket discharge angle(γ) |
27° |
collecting bucket angle(θ) |
46° |
item |
GN200 |
rated power |
14.9KW |
oil tank vol. |
22L |
hydraulic oil tank vol. |
21L |
loading weight |
200 Kg |
bucket VOl. |
0.15 m3 |
Max.pulling force |
5 KN |
Ma.lifting force |
4.6 KN |
speed |
0-8km/h |
rated weight |
260 Kg |
Min.turning radius |
2320mm |
operating weight |
840kg |
